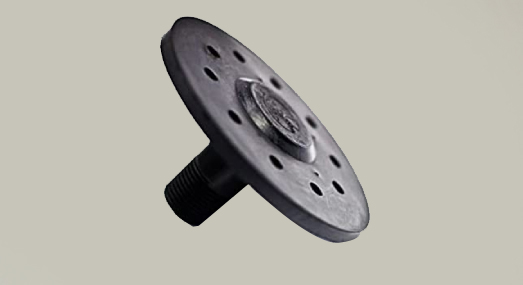

Coarse Bubble Disc Diffuser
COARSE BUBBLE DISC DIFFUSERS
Technical Specification:
| S.No | Sizes | 80 mm | 150 mm |
|---|---|---|---|
| 1 | Type of bubble | Coarse bubble | Coarse bubble |
| 2 | Bubble size | 4 mm to 5 mm | 4 mm to 5 mm |
| 3 | MOC of diffuser | EPDM/Silicon | EPDM/Silicon |
| 4 | MOC of diffuser support | ABS | ABS |
| 5 | Temperature Tolerance | 85°C | 85°C |
| 6 | End connection | 3/4" BSP male thread | 1" BSP male Thread |
| 7 | Operating temperature | 35°C | 35°C |
| 8 | Type of air discharge | Top air discharge | Peripheral air discharge |
| 9 | No of Air Discharge Ports | 10Nos | 10Nos |
| 10 | Air Flow Rate per Diffuser | 3-4m3/hr | 6-8m3/hr |
| 11 | Diffuser support Color | Black & Orange | Black & Orange |
| 12 | Shape of Diffuser | Disc type | Disc type |
